AOYUE Int 2738A+_Multi-Function Systems

DESCRIPTION SPECIFICATION PACKING LIST

Features:

Microprocessor-controlled ESD safe equipment.
Lead-free compatible, 3-in 1 system. Combines hot air gun and smoke absorbing soldering iron.
Integrated smoke absorber efficiently eliminates harmful toxic gases at the source.
Digital offset for easy digital temperature calibration for soldering iron from –70 to +70
All digital display and control of hot air gun, solder iron and de-soldering gun temperature.
Digital control of air pressure with airflow gauge visual feedback for precision adjustment.
User-programmable sleep timers for hot air gun and solder iron.
Auto-cooling system that protects the components from excessive heat,prolonging heater life.
Wide selection of solder iron tips( WQ Series(Lead Free)) for different soldering requirements.
Wide selection of hot air nozzle.

SPECIFICATIONS Specifications are subject to change without prior notice.
POWER INPUT：	available in 110V / 220V
WEIGHT：	8.50 Kg
MAIN STATION DIMENSION：	188 x 126 x 250 mm
HOT AIR GUN
POWER CONSUMPTION：	500W
TEMPERATURE RANGE：	100°C- 480°C
HEATING ELEMENT：	Metal Heating Core
PUMP TYPE：	Diaphragm pump
AIR CAPACITY：	23 L/min (max)
SOLDERING IRON
POWER CONSUMPTION：	70W
OUTPUT VOLTAGE：	24V
TEMPERATURE RANGE：	200°C- 480°C
HEATING ELEMENT：	Ceramic heater
TIP TO GROUND RESISTANCE：	Below 2 Ω
TIP TO GROUND POTENTIAL：	Below 2mV

AOYUE Int 2738A+ Package Content
1 unit	Int2738A+ Main Station with Hot Air Gun and holder.

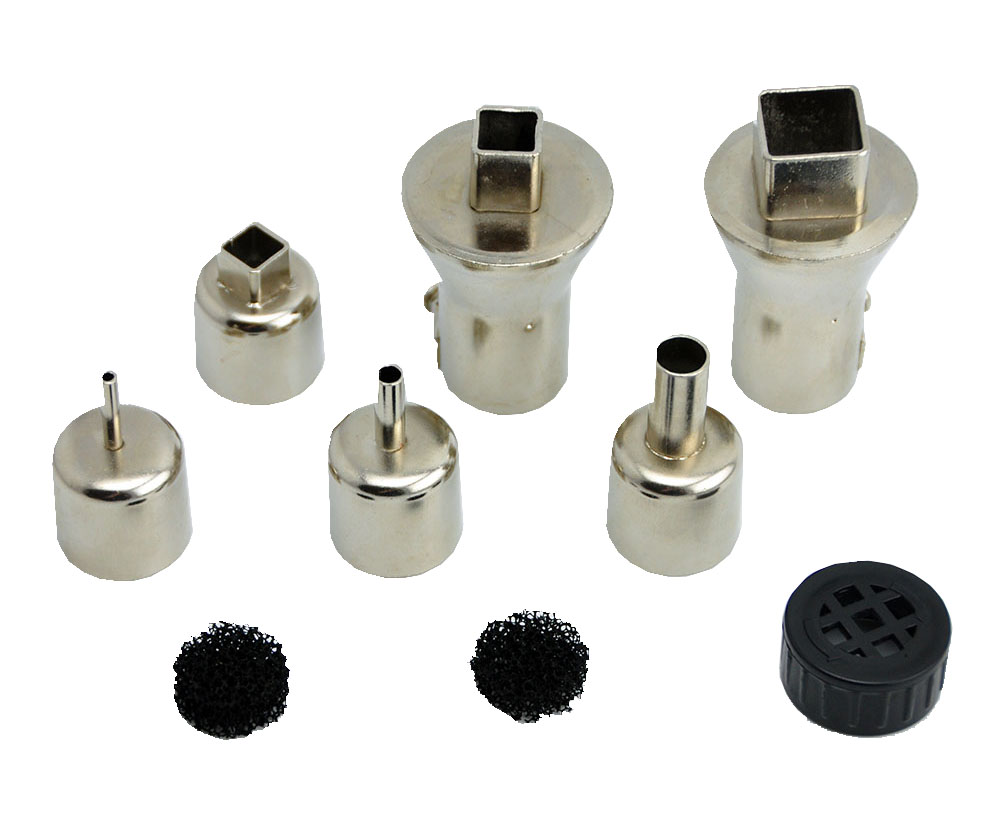

1 pc.	1010 Air Nozzle
1 pc.	1130 Air Nozzle (Single 4.4mm)
1 pc.	1197 Air Nozzle (Single 9 mm)
1 pc.	1124 Air Nozzle
1 pc.	1313 Air Nozzle
1 pc.	1919 Air Nozzle
2 pcs.	30181X Black Filter Pads

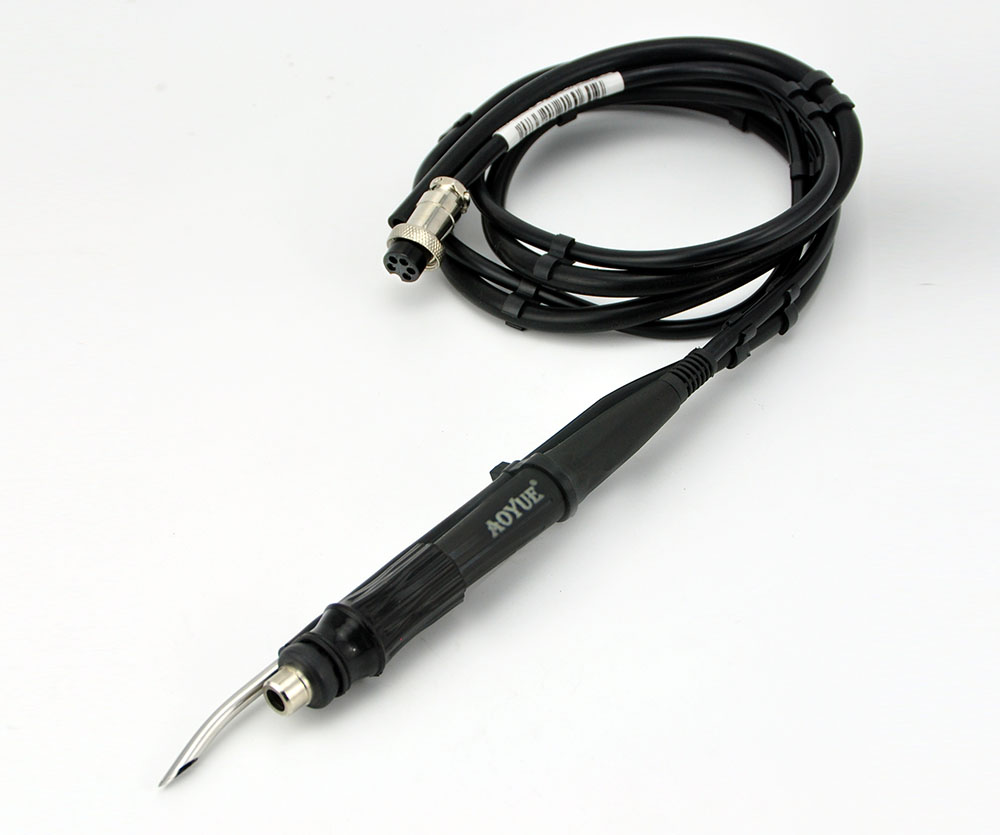

1 pc.	B011 Soldering Iron with Smoke Absorbing function
1 pc.	WQ-2B Soldering Tip
1 pc.	30150J Heat Resistant Pad

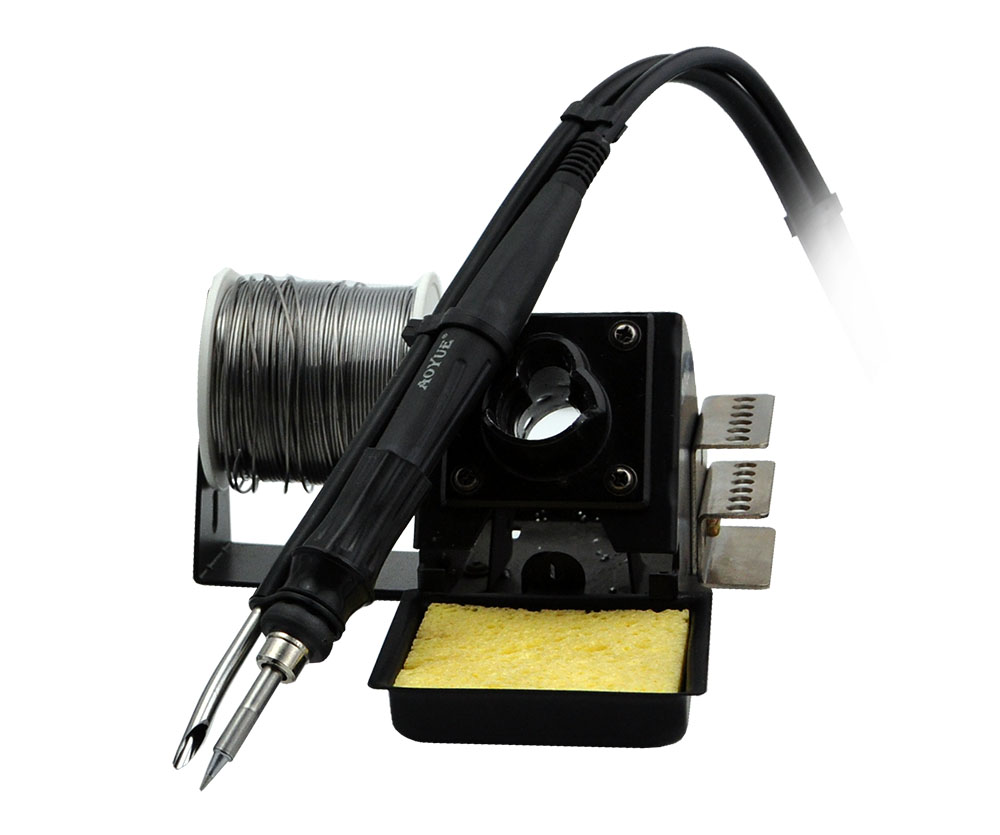

1 pc.	2660B Soldering Iron Stand

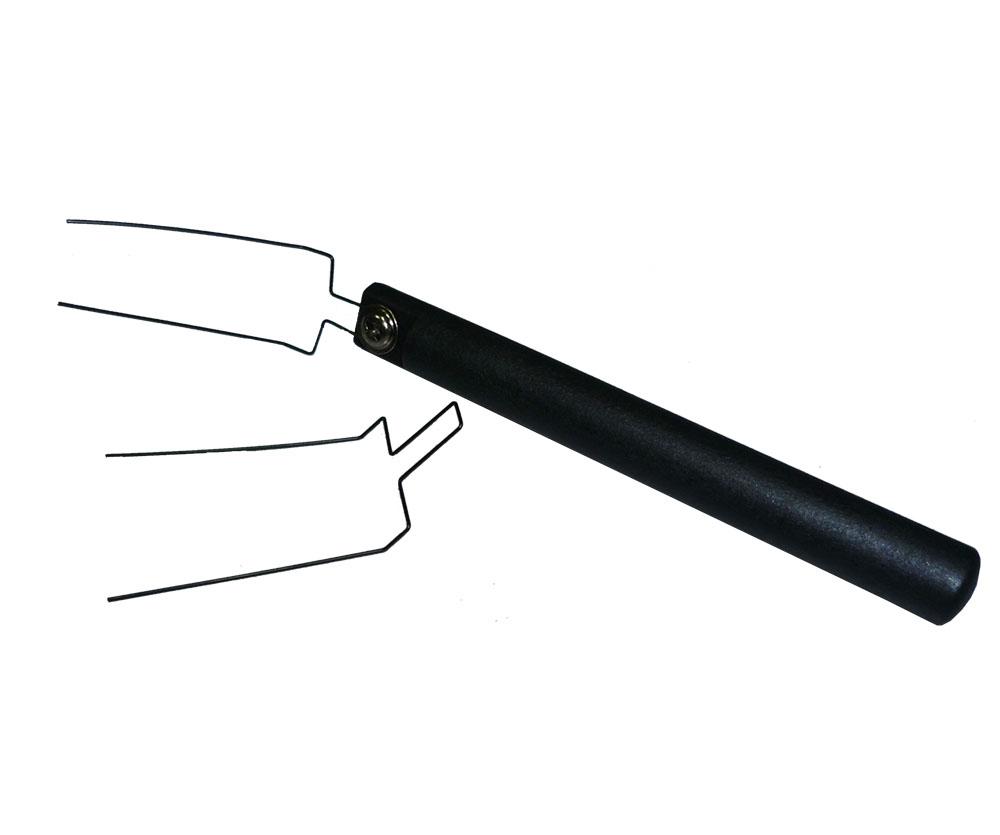

1 pc.	G001 IC Popper
1 pc.	939 Vacuum Pen
1 pc.	Power Cord
1 pc.	Instruction Manual
