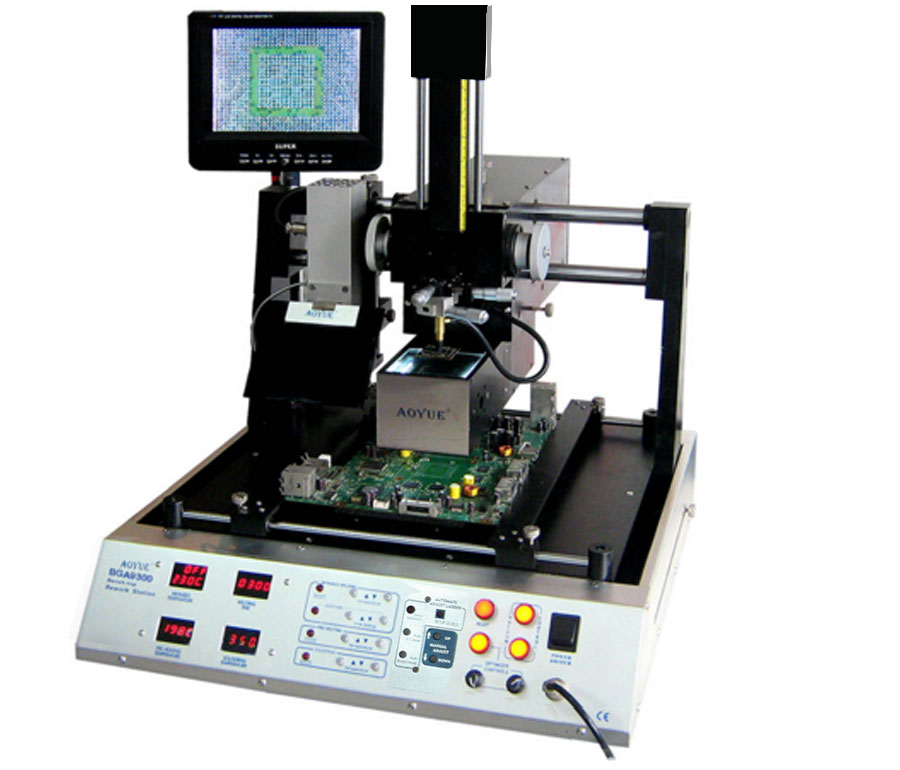

  • AOYUE BGA9300
  • Favorite
    Click to buy

DESCRIPTION SPECIFICATION PACKING LIST

  • Features:
  • Integrates a focused infrared top heater, split-vision alignment, pre-heater, and soldering Iron into one sophisticated reworking system.
  • Micro-processor controlled system with full digital display of time, temperature and airflow parameters for maximum performance.
  • Closed loop control accurately maintains the desired temperature at board level.
  • Innovative three axis positioning system using precise micrometers for BGA alignment.
  • Split vision technology with color LCD display aids in the proper alignment of the BGA.
  • Precision solder. Combination of pre-heater and top heater to reach reflow temperature effectively minimizes overheat or under heating.
  • Fast response IR lamp technology gives accurate and ample heating suitable for various IC packages and sizes.
  • Compatible with lead-free and standard solder process.
  • Integrated lead-free compatible soldering iron. (see page 55 for compatible tips)
  • Versatile PCB holder that can accommodate PCBs sizes of up to 280 x 430 mm.
  • BGA 9000A -Manual pick and place of ICs with the adjustment ladder.
  • BGA 9300 - Automated pick and placement of BGAs with simple button controls.
SPECIFICATIONS
Specifications are subject to change without prior notice.
 POWER INPUT:  available in 110V / 220V
WEIGHT: 50 Kg
MAIN STATION DIMENSION: 510 x 580 x 465 mm
SOLDERING IRON
POWER CONSUMPTION: 75W
OUTPUT VOLTAGE: 24V
 TEMPERATURE RANGE: 200°C- 480°C
HEATING ELEMENT: Ceramic heater
TIP TO GROUND RESISTANCE: Below 2 Ω
TIP TO GROUND POTENTIAL:  Below 2mV
PRE-HEATER
POWER CONSUMPTION: 550W
 TEMPERATURE RANGE: 100°C- 350°C
HEATING ELEMENT: Quartz Infrared
Dimension: 280 x 430  mm
INFRARED LAMP
POWER CONSUMPTION: 170W
OUTPUT VOLTAGE: 24V
TEMPERATURE RANGE: 200°C- 480°C
HEATING ELEMENT:  Halogen Light Source



AOYUE BGA9300  Package Content
1 unit BGA9300 Main Station
1 pc. Infrared Tool
1 pc. Soldering Iron
1 pc. Tip with Heater Cartridge
1 pc. Soldering Iron Holder
1 pc. Heat Resistant Pad
1 pc. Connecting Cord
1 pc. LCD Monitor
1 pc. LCD Monitor Holder
1 pc. Monitor Connecting Wires
1 pc. Light Optimizer Connecting Wires
1 pc. Replacement Suction Nozzles
1 pc. External IR Sensor
1 pc. Welding Goggles
1 pc. Connecting Cord
1 pc. Air Tube for Pump
1 pc. Vacuum Pencil
1 pc. Suction Caps (L, M, S)
1 pc. Solder Paste
1 pc. Solder Flux
1 pc. Lubricant for Adjust Ladder
1 pc. Tools for Micro Adjust System
1 pc. Replacement Fuse
1 pc. IC Popper
1 pc. Power Cord
1 pc. Instruction Manual
