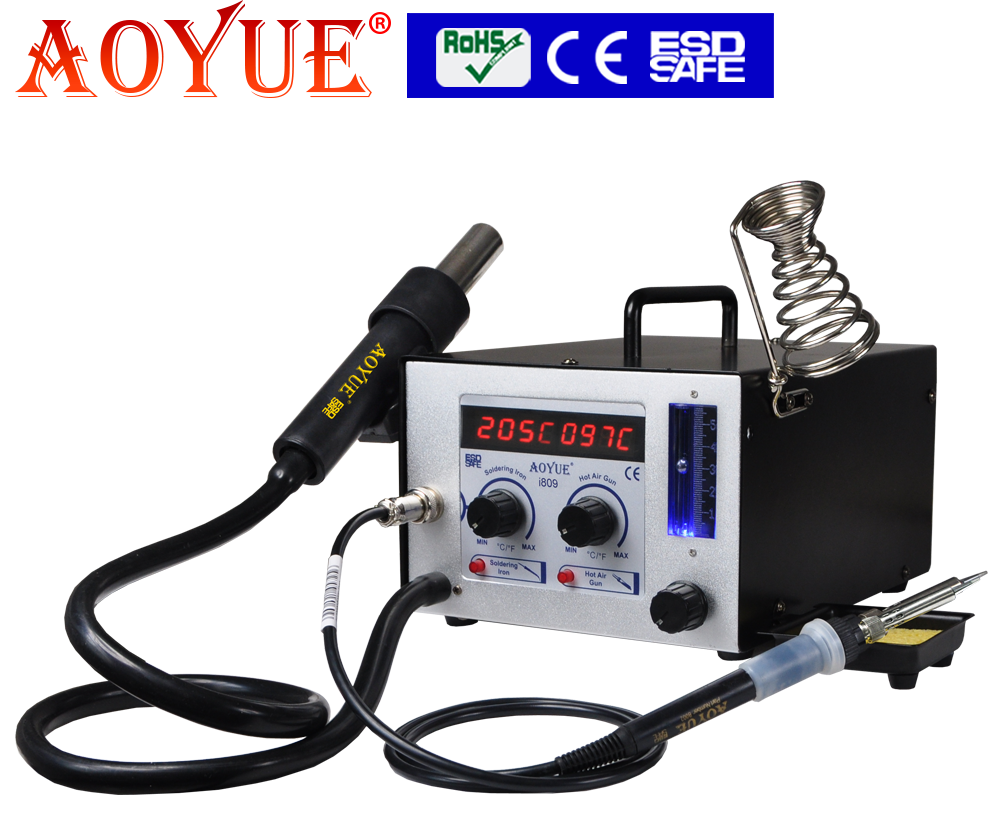

AOYUE i809
  • AOYUE i809
  • Favorite
    Click to buy

DESCRIPTION SPECIFICATION PACKING LIST

Features:

  • Microprocessor-controlled ESD safe equipment.
  • 2-in-1 repairing system combining Hot Air Gun and Soldering Iron, in one sophisticated package.
  • Digital control and display of hot air temperature, soldering iron temperature, air pressure with knob type controls for ease of use.
  • Switchable temperature readout between Fahrenheit and Centigrade.
  • User configurable sleep mode for additional device protection and power saving.
  • Hot air gun and soldering iron with digital calibration function.
  • Built-in auto-cooling process that protects the system and its components from excessive heat, prolonging usage life.
  • Compatibility with air nozzles of various types.
  • Wide selection of solder iron tips(T Series Soldering tips) for different soldering requirements.



                                                           SPECIFICATIONS
POWER INPUT: available in 110V / 220V
WEIGHT: 5.60 Kg
MAIN STATION DIMENSION: 188 x 250 x 126 mm
HOT AIR GUN
POWER CONSUMPTION: 500W
TEMPERATURE RANGE: 100°C- 480°C
HEATING ELEMENT: Metal Heating Core
PUMP TYPE: Diaphragm pump
AIR CAPACITY: 23 L/min (max)
SOLDERING IRON
POWER CONSUMPTION: 60W
OUTPUT VOLTAGE: 24V
TEMPERATURE RANGE: 200°C- 480°C
HEATING ELEMENT: PTC heater
TIP TO GROUND RESISTANCE: Below 2 Ω
TIP TO GROUND POTENTIAL: Below 2mV





AOYUE i809 Package Content
1 unit i809 Main Station with Hot Air Gun and holder.
1 pc. 1124 Air Nozzle,1197 Air Nozzle (Single ø9 mm)
1 pc. Soldering Iron
1 pc. IC Popper
1 pc. Sponge Tray
1 pc. Power cord
1 pc.  User Manual
