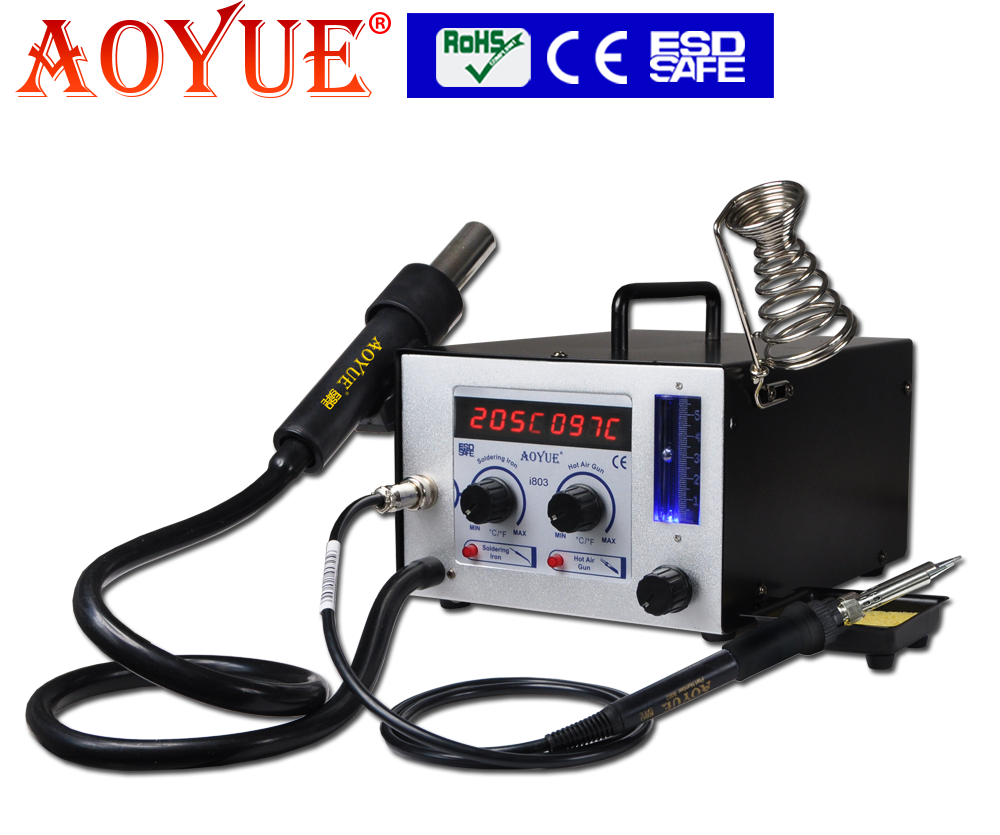

    AOYUE i803
    • AOYUE i803
    • Favorite
      Click to buy

    DESCRIPTION SPECIFICATION PACKING LIST

    Features:

    • Microprocessor-controlled ESD safe equipment.
    • 2-in-1 repairing system combining Hot Air Gun and Soldering Iron, in one sophisticated package.
    • Digital control and display of hot air temperature, soldering iron temperature, air pressure with knob type controls for ease of use.
    • Switchable temperature readout between Fahrenheit and Centigrade.
    • User configurable sleep mode for additional device protection and power saving.
    • Hot air gun and soldering iron with digital calibration function.
    • Built-in auto-cooling process that protects the system and its components from excessive heat, prolonging usage life.
    • Compatibility with air nozzles of various types.
    • Wide selection of solder iron tips(T Series Soldering tips) for different soldering requirements.



      SPECIFICATIONS
    POWER INPUT: available in 110V / 220V
    WEIGHT: 5.60 Kg
    MAIN STATION DIMENSION: 188 x 250 x 126 mm
    HOT AIR GUN
    POWER CONSUMPTION: 500W
    TEMPERATURE RANGE: 100°C- 480°C
    HEATING ELEMENT: Metal Heating Core
    PUMP TYPE: Diaphragm pump
    AIR CAPACITY: 23 L/min (max)
    SOLDERING IRON
    POWER CONSUMPTION: 30W
    OUTPUT VOLTAGE: 24V
    TEMPERATURE RANGE: 200°C- 480°C
    HEATING ELEMENT: Ceramic heater
    TIP TO GROUND RESISTANCE: Below 2 Ω
    TIP TO GROUND POTENTIAL: Below 2mV





    AOYUE i803 Package Content
    1 unit i803 Main Station with Hot Air Gun and holder.
    1 pc. 1124 Air Nozzle,1197 Air Nozzle (Single ø9 mm)
    1 pc. Soldering Iron
    1 pc. IC Popper
    1 pc. Sponge Tray
    1 pc. Power cord
    1 pc.  User Manual
