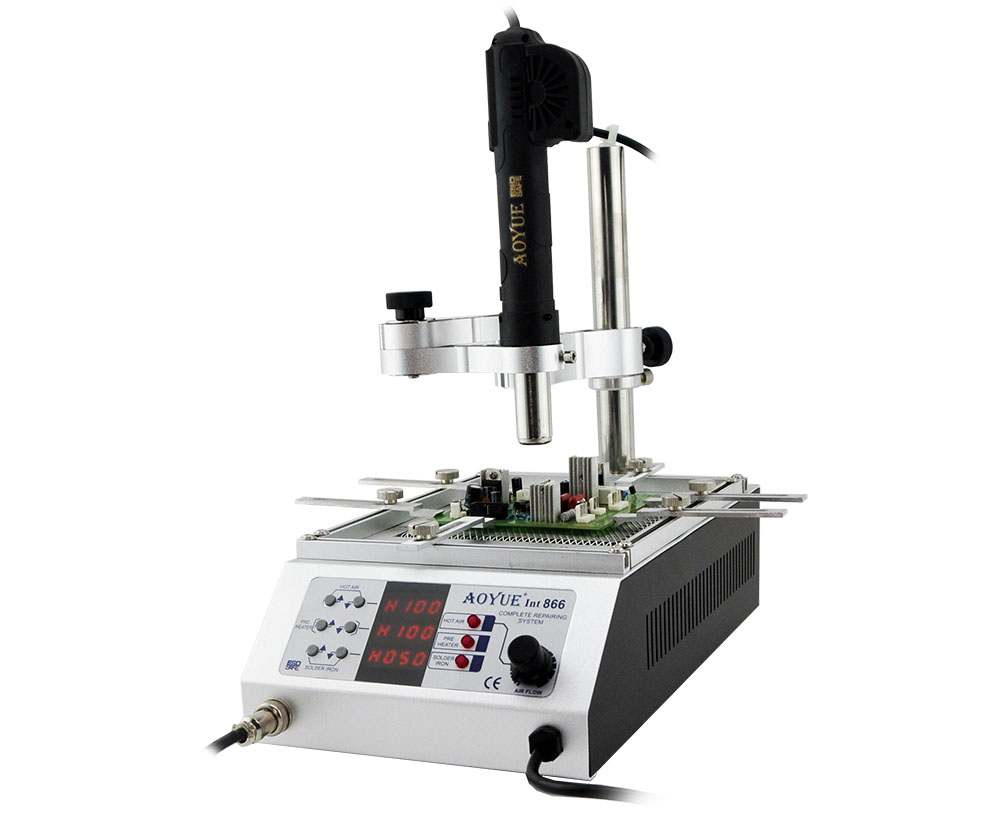

- AOYUE Int 866
DESCRIPTION SPECIFICATION PACKING LIST
Features:
- Microprocessor-controlled ESD safe equipment.
- 4-in-1 repairing system combining Hot Air Gun, Soldering Iron, Pre-Heater, External Sensor, Hot Air gun stand in one sophisticated package.
- Digital control and display of hot air temperature, soldering iron temperature, air pressure, pre-heater temperature with touch type panel controls for precision and ease of use.
- Digital calibration for both Hot Air Gun temperature and Solder Iron temperature.
- Switchable temperature readout between Fahrenheit and centigrade.
- Integrated hot air gun platform.
- User configurable 1 to 30 minute idle-to-auto-stand-by mode (with 30 minutes as default) for additional device protection and power saving.
- Built-in auto-cooling process that protects the system and its components from excessive heat, prolonging usage life.
- Compatibility with air nozzles of various types.
- Wide selection of solder iron tips( T Series Soldering tips) for different soldering requirements.
| SPECIFICATIONS Specifications are subject to change without prior notice. | |
| POWER INPUT： | available in 110V / 220V |
| WEIGHT： | 6.55Kg |
| MAIN STATION DIMENSION： | 192 x 100 x 325 mm |
| HOT AIR GUN | |
| POWER CONSUMPTION： | 600W |
| TEMPERATURE RANGE： | 100°C- 480°C |
| HEATING ELEMENT： | Metal Heating Core |
| PUMP TYPE： | Siroccoo Fan |
| SOLDERING IRON | |
| POWER CONSUMPTION： | 75W |
| OUTPUT VOLTAGE： | 24V |
| TEMPERATURE RANGE： | 200°C- 480°C |
| HEATING ELEMENT： | Ceramic heater |
| TIP TO GROUND RESISTANCE： | Below 2 Ω |
| TIP TO GROUND POTENTIAL： | Below 2mV |
| PRE-HEATER | |
| POWER CONSUMPTION： | 550W |
| TEMPERATURE RANGE： | 100°C- 350°C |
| HEATING ELEMENT： | Quartz Crystal |
| HEATING AREA： | 130mm X 130mm |

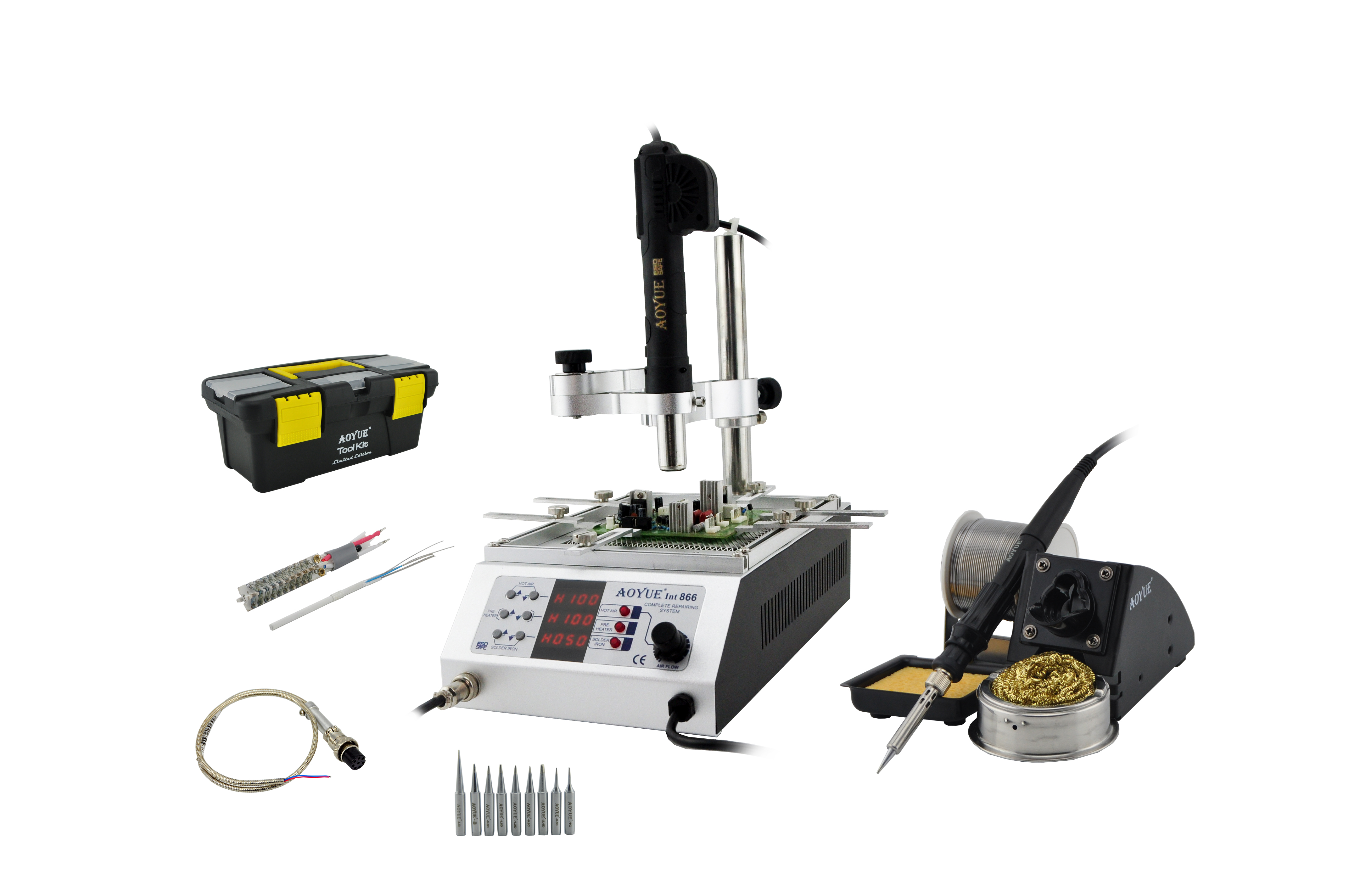

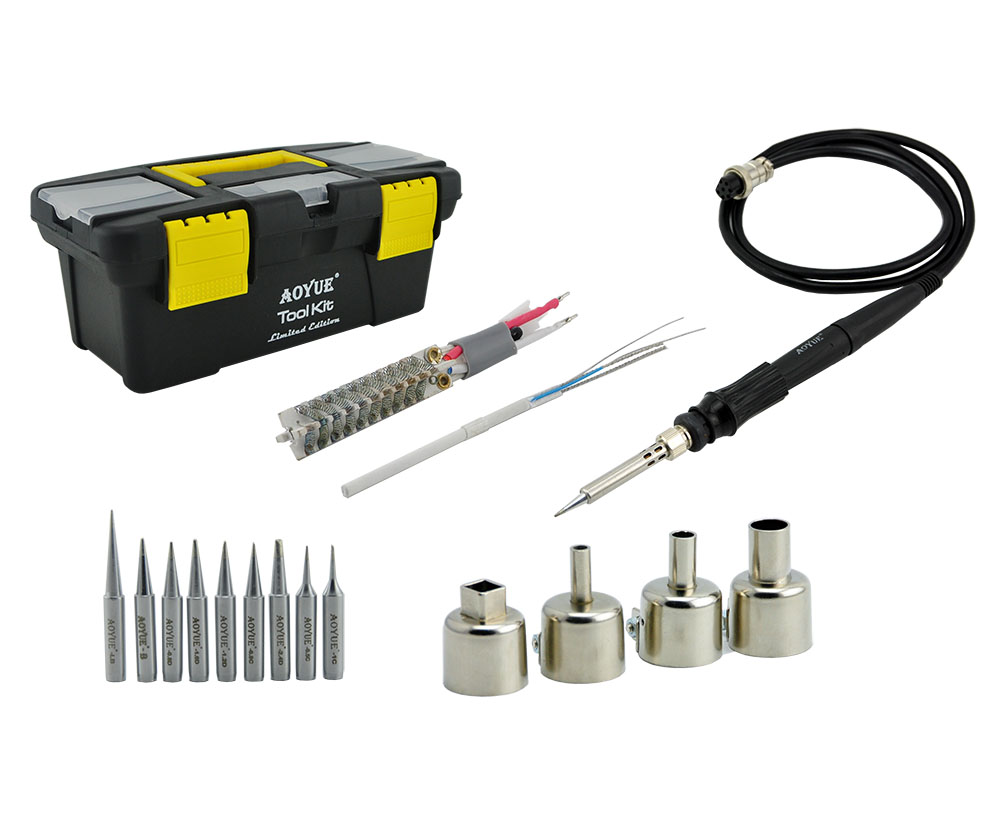

| AOYUE Int 866 Package Content | |
| 1 unit | Int866 Main Station with Pre-heater and Hot Air Gun |
| 1 pc. | Spare Hot Air Gun Heating Element |
| 1 pc. | External Sensor |
| 1 pc. | Hot Air Gun Mast with Wire Holder |
| 1 pc. | 3-Segment Fully Articulating Arm Holder |
| 1 pc. | Holder Stopper with Securing Screw |
| 6 pcs.. | PCB Holder |
| 7 pcs. | PCB Holder Securing Screw |
| 1 pack. | AT-9 Air Nozzle Set (T1194, T1195, T1198, BGA-S) |
| 1 pc. | B016 Soldering Iron with Tip |
| 1 pc. | Spare Soldering Iron Heating Element |
| 1 pack. | Soldering Iron Tips (10pcs) includes T-0.5C, T-0.8C, T-0.8D,T-1C, T-1.2D, T-1.6D, T-2.4D, T-B, T-LB, T-I* |
| 1 pc. | 2660 Soldering Iron Stand |
| 1 pc. | Soldering Iron Stand Assembly guide |
| 1 pc. | Vacuum Pen with 3 vacuum caps |
| 1 pc. | Tool Box |
| 1 pc. | G001 IC Popper |
| 1 pc. | Power Cord |
| 1 pc. | Instruction Manual |
