DESCRIPTION SPECIFICATION PACKING LIST
Features:
- Microprocessor-controlled with digital display of actual and set temperature.
- ESD safe station and closed loop control of temperature for precision soldering.
- Large temperature control knob for easy adjustment of set temperature.
- High power heating element allowing faster heat recovery suitable for lead free processes.
- High performance ceramic heater with removable tip design. See page 60 for available tips.
- Power saving feature with auto sleep and wake up function with the integrated vibration sensor.
- Programmable sleep timer to allow maximum power savings depending on usage.
- Lead free compatible soldering iron with replaceable tip design.
SPECIFICATIONS | |
POWER INPUT: | available in 110V / 220V |
WEIGHT: | 2.5Kg |
MAIN STATION DIMENSION: | 115 x 155 x 90 mm |
SOLDERING IRON | |
POWER CONSUMPTION: | 70W |
OUTPUT VOLTAGE: | 24V |
TEMPERATURE RANGE: | 200°C- 480°C |
HEATING ELEMENT: | Ceramic heater |
TIP TO GROUND RESISTANCE: | Below 2 Ω |
TIP TO GROUND POTENTIAL: | Below 2mV |
AOYUE Int 3210 Package Content | |

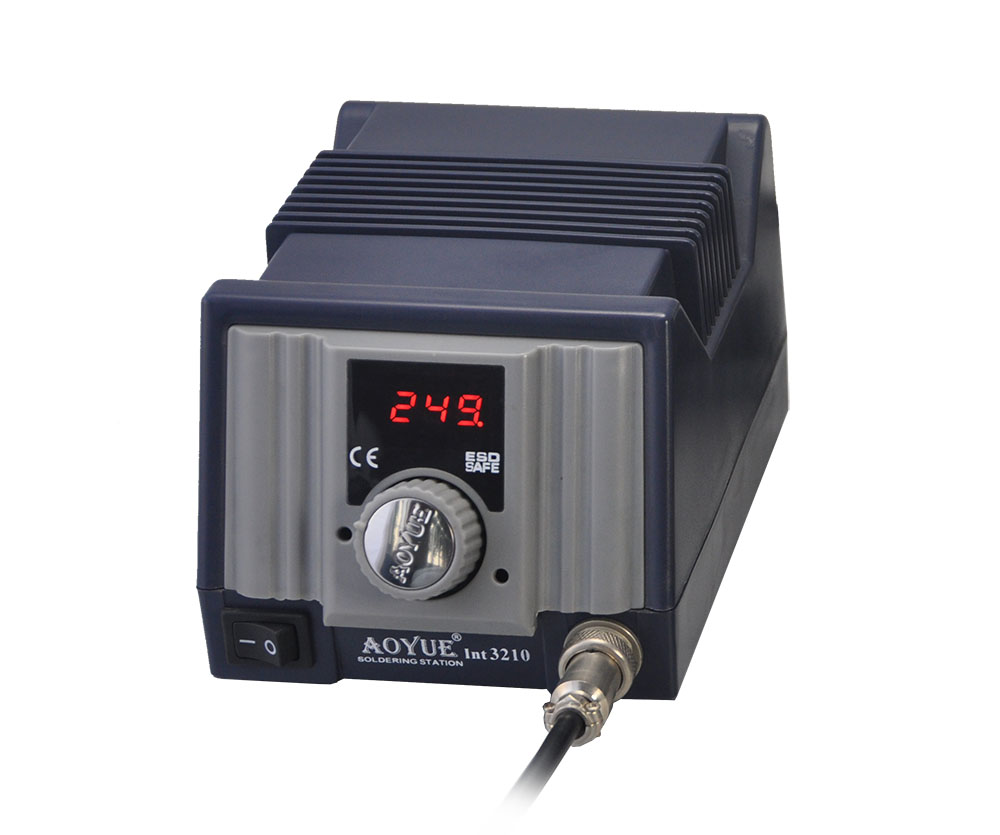

1 unit | Main Station |

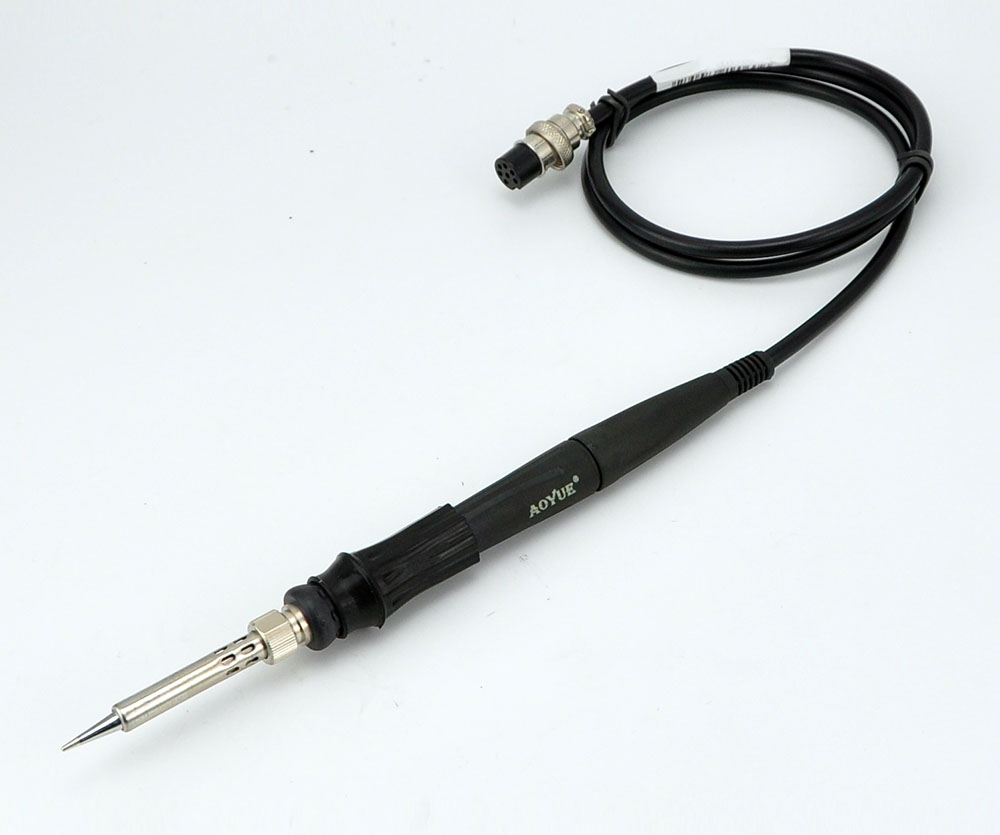

1 PC | B014 Soldering Iron |

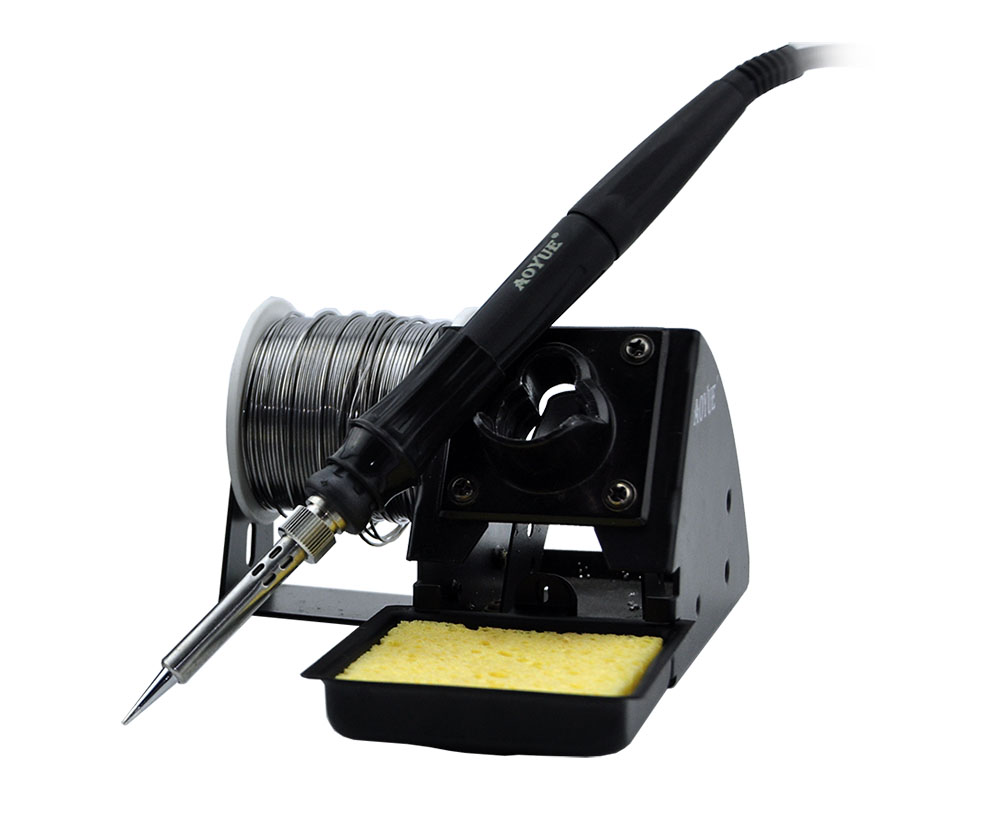

1 PC | 2660 Soldering Iron Stand |
1 PC | Power Cord |
1 PC | Instruction Manual |
