HOME > DESOLDERING SYSTEMS > AOYUE INT 701A+

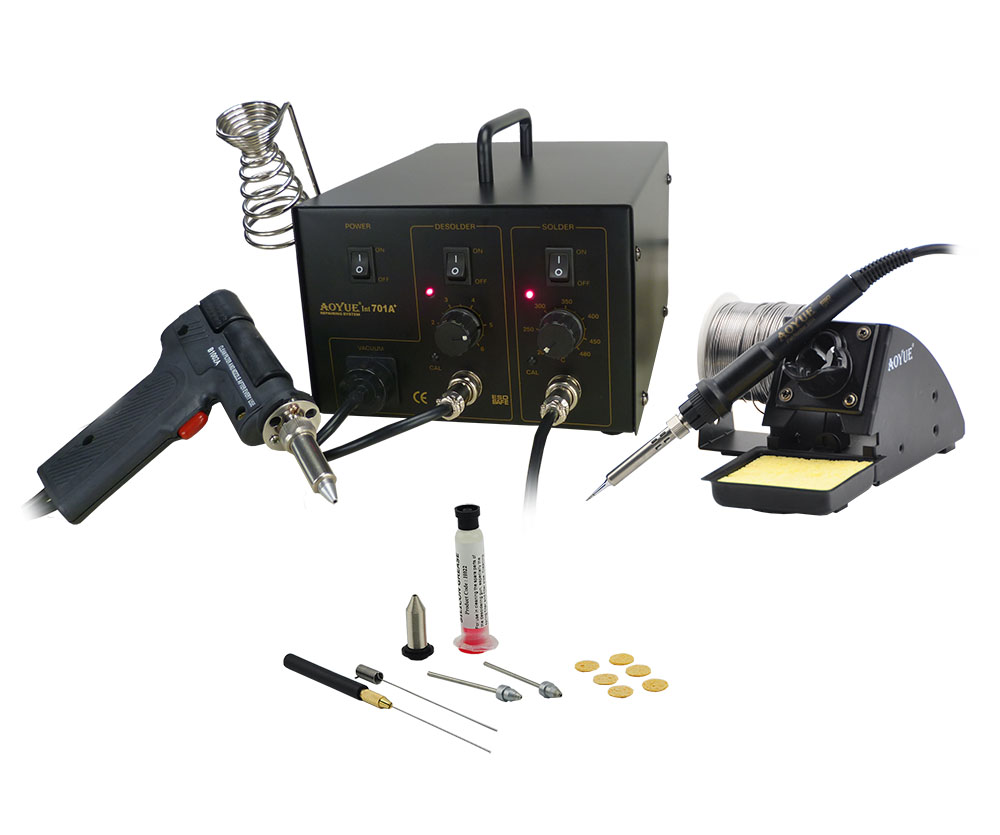

AOYUE Int 701A+AOYUE Int 701A+AOYUE Int 701A+AOYUE Int 701A+AOYUE Int 701A+AOYUE Int 701A+
  • AOYUE Int 701A+
  • Favorite
    Click to buy

DESCRIPTION SPECIFICATION PACKING LIST

Features:

  • 2-in-1 system. Combines de-soldering gun with soldering iron in one package.
  • Designed with traditional knob type control for efficiency.
  • Ergonomically designed de-soldering gun and soldering iron.
  • Equipped with zero crossing circuitry to prevent electrical surges.
  • De-soldering tool uses high capacity air cylinder pump for strong suction power.
  • De-soldering gun comes with different sized nozzles to suit different de-soldering jobs.
  • Soldering iron with 24V output voltage for safety of user and equipment.
  • Solder Iron is equipped with high performance ceramic heater with removable tip design.
  • Wide selection of solder iron tips(T Series Soldering tips) for different soldering requirements.

                                                       SPECIFICATIONS                                                                                       Specifications are subject to change without prior notice.
 POWER INPUT:  available in 110V / 220V
WEIGHT:  5.6 Kg
MAIN STATION DIMENSION:  188 x 126 x 250 mm
DESOLDERING GUN
POWER CONSUMPTION:  60W
OUTPUT VOLTAGE:  24V
 TEMPERATURE RANGE:  200°C- 380°C
HEATING ELEMENT:  Ceramic heater

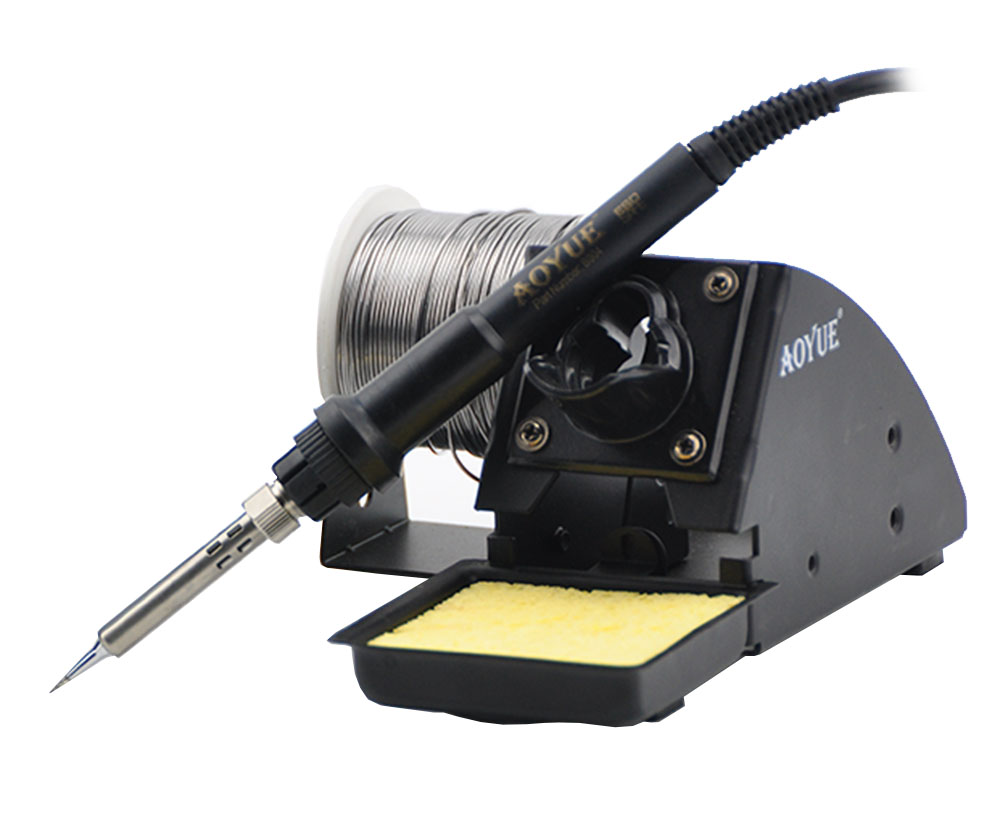

SOLDERING IRON
POWER CONSUMPTION:  35W
OUTPUT VOLTAGE:  24V
 TEMPERATURE RANGE:  200°C- 480°C
HEATING ELEMENT:  Ceramic heater



AOYUE Int 701A+  Package Content
1 unit Int 701A+Main Station
1 pc. B004 Soldering Iron
1 pc. B1002A Desoldering Gun and Holder
1 pc. 2660 Soldering Iron Holder*
1 pc. 201252 Filter Spring
1 pc. 302092 Desoldering tips (1.5mm)
1 pc. 302082 Desoldering tips (1.0mm)
1 pack 3017J Filter Pads (6pcs.)
1 pc. 3024X Spring Filter Cap
1 pc. 201242 Nozzle cleaning pin
1 pc. 20178 Cleaning Drill
1 pc. Power Cord
1 pc. Instruction Manual
